Reinforcement Detailing · Australia-wide
Reinforcement shop drawings and bar scheduling for projects across Australia.
Reinforcement shop drawings and bar schedules — detailing and call-offs your fabricators can build straight from.
What we do
Services
Slab & Footing Reinforcement
Slabs on ground, suspended slabs, strip and pad footings, ground beams, mesh and bar.
Walls & Basements
In-situ and proprietary (AFS-type) walls, retaining and basement walls, shotcrete.

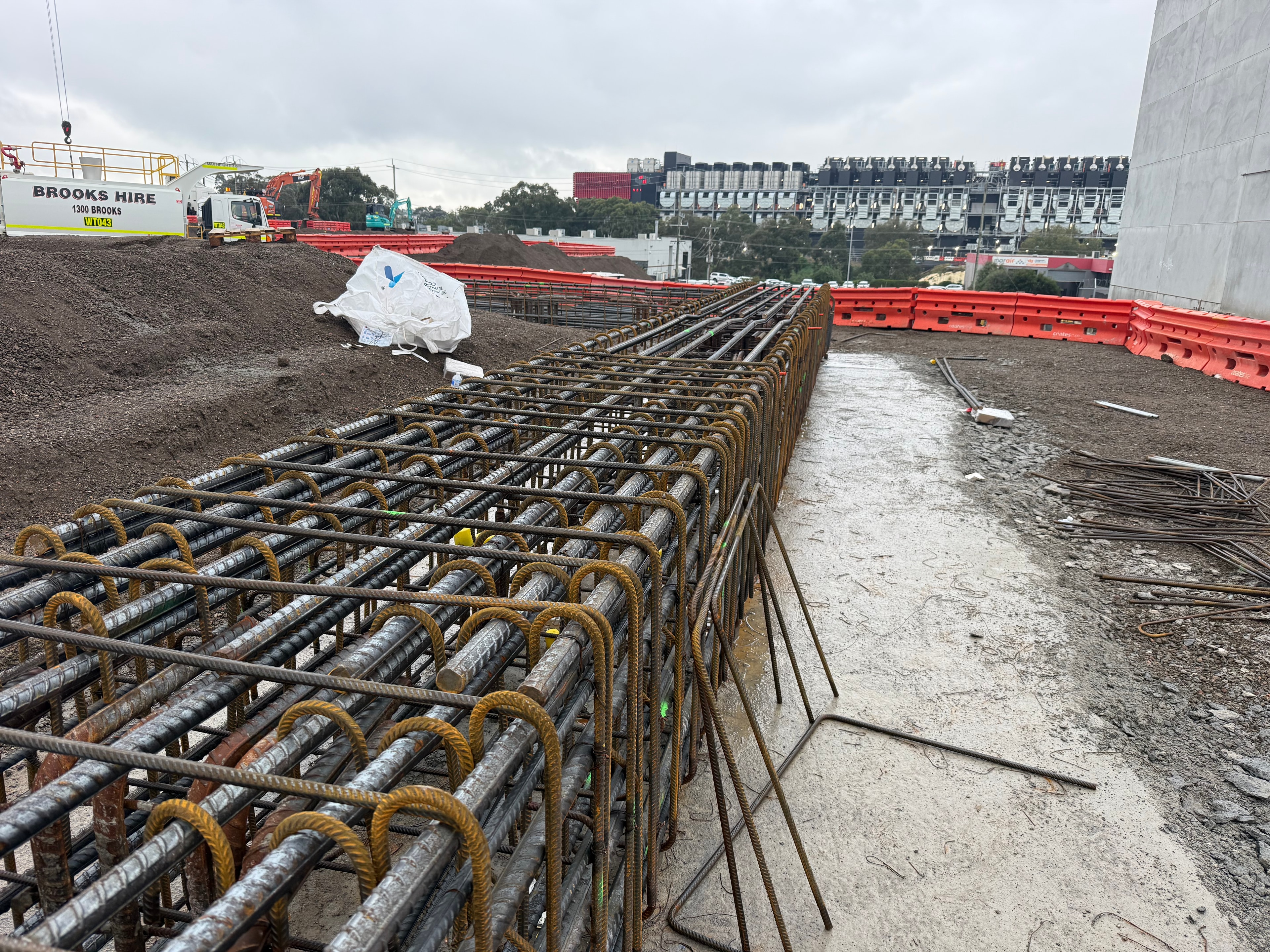

Prefabricated Reinforcement Cages
Pile cages, column and beam cages detailed for offsite fabrication.
Bar Bending Schedules & Call-Offs
ARMA and ASA format schedules, cut-and-bend lists, mass takeoffs.
Sundry & Accessories
Tie wire, bar chairs, spacers, cover clips and all reinforcement products scheduled per order.
QA Checking
Three-way checks (design vs shop drawing vs schedule) with severity-ranked reports.
Portfolio
Sample Work
Sample drawings and schedules shown are anonymised. Contact us for project references.
Pile Cage — Vertical Bar Layout
Ligature and lifting point detail — anonymised sample
Open PDFOur difference
Why Prodrawing
Australian-code compliant
AS 3600, AS/NZS 4671, ARC/ARMA shape codes and bar-listing formats.
Fabricator-ready output
Schedules formatted to drop straight into the fabricator's system.
Full scope
Substructure to superstructure — one detailer for the whole project.
Independent QA
Three-way checks with severity-ranked reports issued before every release.
About
About Prodrawing
Prodrawing produces reinforcement shop drawings and bar bending schedules for concrete construction. We schedule to Australian codes and industry conventions — AS 3600 (concrete structures), AS/NZS 4671 (reinforcing steel), and ARC/ARMA shape codes and bar-listing formats — so schedules drop straight into the fabricator's system.
Every schedule is QA-checked against the engineer's design and the call-off before it's issued.
Get in touch
Contact
Send us your drawings and we'll provide a quote. We work with builders, engineers, and fabricators across Australia.
